Buffer Tank Sunsystem, Model P 800, Capacity 800L Vessel

Saving energy and money is achieved using buffer vessels of the Sunsystem P series in the central heating system.

  • Stock: Sandėlyje
  • Prekės ženklas: Sunsystem
  • SKU: 01.409.003
€ 1 549,00
incl. VAT
Be PVM: € 1 290,83

     Sutaupykite  5%   su banko pavedimu.

NUMATOMAS PRISTATYMAS
18.Jul.2025
DHL Schenker
Žr. Pristatymo Politiką

Nemokamas grąžinimas
60 dienųŽr. išsamią informaciją

Priimame mokėjimus
    Žr. išsamią informaciją

Accumulates the heat generated by solid fuel boiler, solar heater, heat pump or any other source; recommended for every central heating system.
Ensures the optimum operation and efficiency of a solid fuel boiler, permitting the functioning at nominal power output, even when the heating of the premisses does not require all the heat energy produced thereby.
Produced heat is accumulated and stored inside the buffer tank like hot water and can be used even when the boiler itself has cooled down.


Modifications and sizes, in liters:
300, 500, 800, 1000, 1500, 2000, 2500, 3000, 5000

Energy Efficiency Directive 2010/30 /EU,
Regulation 812/2013:


Class C - capacity from 300 to 5000 Liters;

Product  features:

  • Removable high efficiency insulation with thickness 100 mm and outer casing of PVC with RAL 9006 color
  • Multi-position mounting of temperature sensor
  • Primer coated on the outside of the tank
  • All threads are internal
  • inlet / Outlet connections - at 180 degrees
  • Easy installation
  • Optional kit for electric heating with nominal power  3kW, 4.5kW, 6kW or 7.5kW

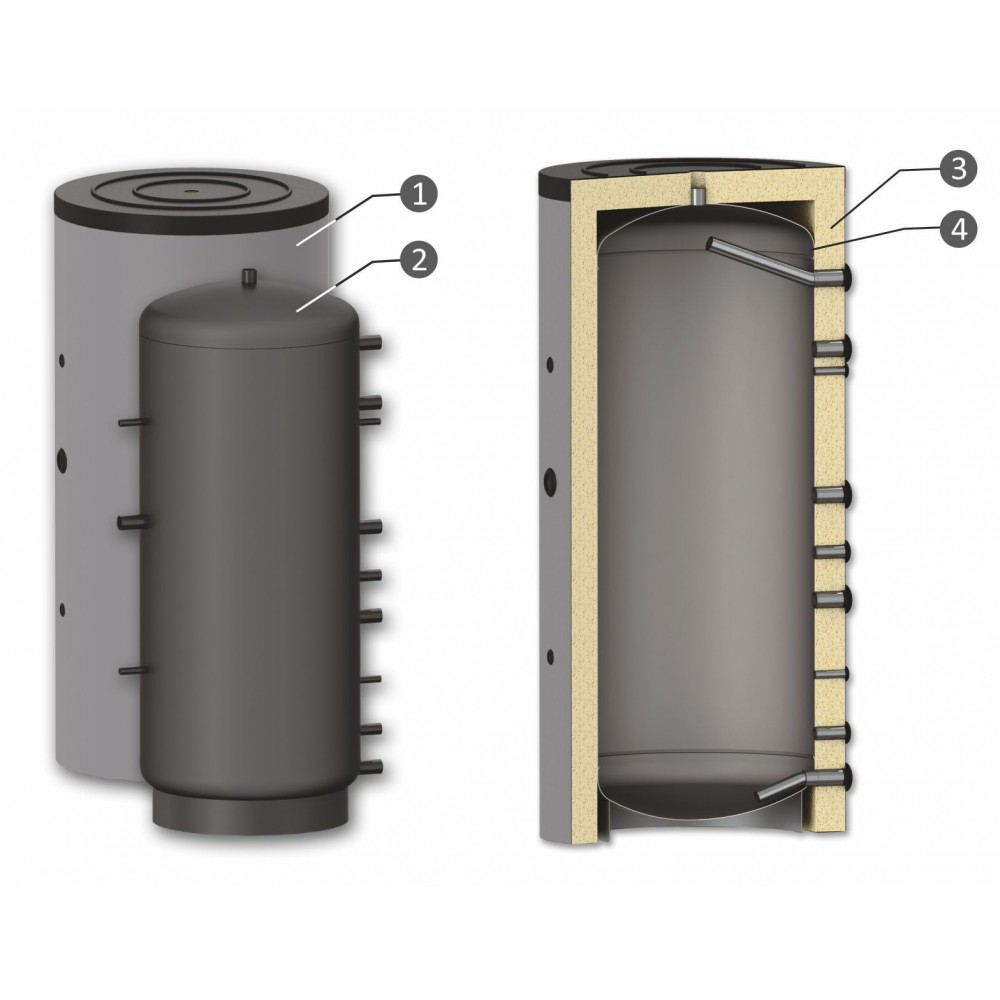

1. Aesthetic PVC jacket with color RAL 9006
2. Primer coated outer surface
3. Removable insulation
4. Water tank of low-carbon steel





Characteristics
Svoris (kg) 126.0000
Gamintojo šalis Bulgaria
Aukštis (mm) 1910
Garantija 2 Years
Sertifikacija CE
Termometras Optional
Energijos efektyvumo klasė C
Vandens talpa/turis (L) 800
Montavimas Free standing
Šilumokaičio vamzdis No heat exchanger
Aukštis be izoliacijos (mm) 1860
Skersmuo (mm) 990
Skersmuo be izoliacijos (mm) 790
Minimalus vertikalus atstumas (mm) 1900
Izoliacijos svoris (kg) 16.4
Maksimali buferio darbo temperatūra (°C) 95

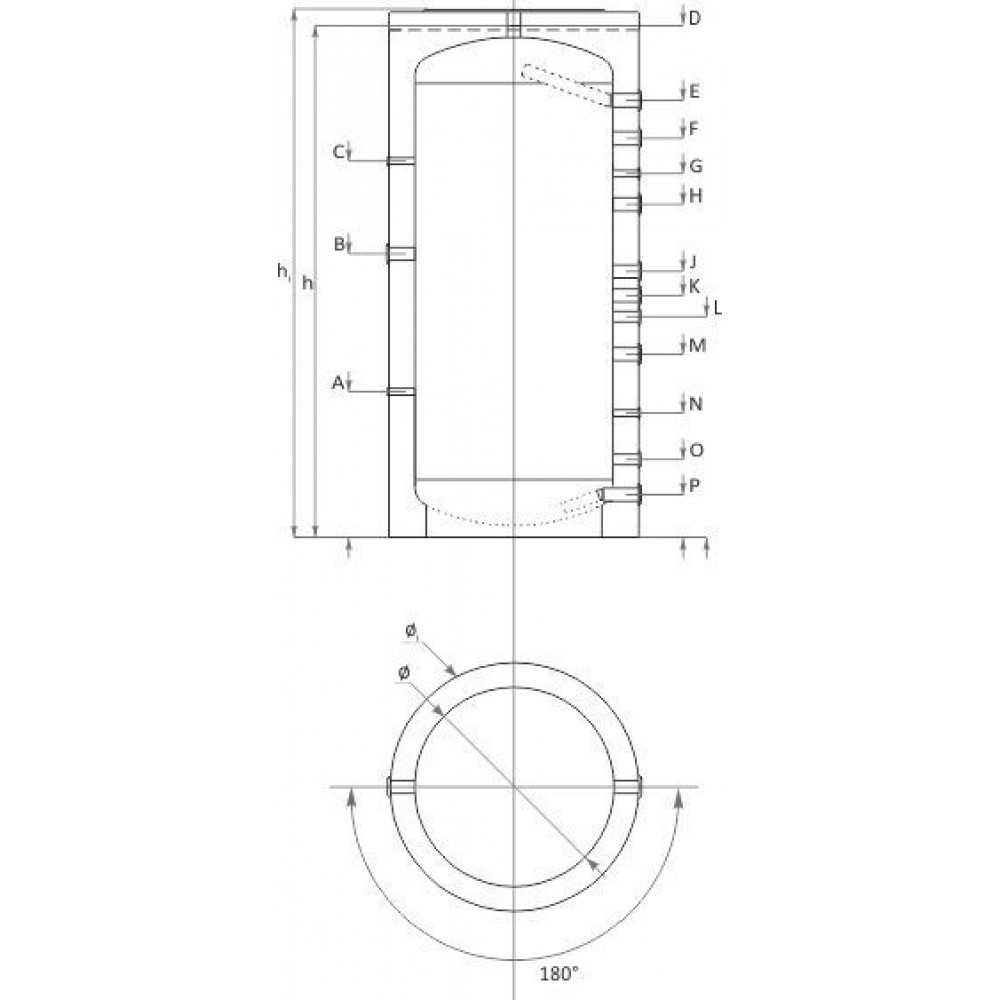

Jutiklio apvalkalas A (mm) G 1/2'' / 570
Elektros šildymo elemento B (mm) G 1 1/2'' / 920
Jutiklio apvalkalas C (mm) G 1/2'' / 1290
Orto apvalkalas D (mm) G 1 1/2'' / 1860
Katilo šilumnesio E (mm) G 1 1/2'' / 1573
Jutiklio apvalkalas G (mm) G 1/2'' / 1290
Katilo šilumnesio J (mm) G 1 1/2'' / 980
Šilumnesio įėjimas L (mm) G 1'' / 820
Katilo šilumnesio M (mm) G 1 1/2'' / 670
Jutiklio apvalkalas N (mm) G 1/2'' / 465
Šilumnesio išėjimas O (mm) G 1'' / 310
Šilumnesio įėjimas F (mm) G 1 1/2'' / 1390
Katilo šilumnesio išėjimas P (mm) G 1 1/2'' / 170
Buferio darbo slėgis (bar) 3
