Buffer Tank Sunsystem, Model P 1500, Capacity 1500L, Industrial Vessel

Saving energy and money is achieved using buffer vessels of the Sunsystem P series in the central heating system.

  • Stock: Sandėlyje
  • Prekės ženklas: Sunsystem
  • SKU: 01.409.005
€ 1 549,10
incl. VAT
Be PVM: € 1 290,92

     Sutaupykite  5%   su banko pavedimu.

NUMATOMAS PRISTATYMAS
18.Jul.2025
DHL Schenker
Žr. Pristatymo Politiką

Nemokamas grąžinimas
60 dienųŽr. išsamią informaciją

Priimame mokėjimus
    Žr. išsamią informaciją

Accumulates the heat generated by solid fuel boiler, solar heater, heat pump or any other source; recommended for every central heating system.
Ensures the optimum operation and efficiency of a solid fuel boiler, permitting the functioning at nominal power output, even when the heating of the premisses does not require all the heat energy produced thereby.
Produced heat is accumulated and stored inside the buffer tank like hot water and can be used even when the boiler itself has cooled down.


Modifications and sizes, in liters:
300, 500, 800, 1000, 1500, 2000, 2500, 3000, 5000


Product  features:

  • Removable high efficiency insulation with thickness 100 mm and outer casing of PVC with RAL 9006 color
  • Multi-position mounting of temperature sensor
  • Primer coated on the outside of the tank
  • All threads are internal
  • inlet / Outlet connections - at 180 degrees
  • Easy installation
  • Optional kit for electric heating with nominal power  3kW, 4.5kW, 6kW or 7.5kW

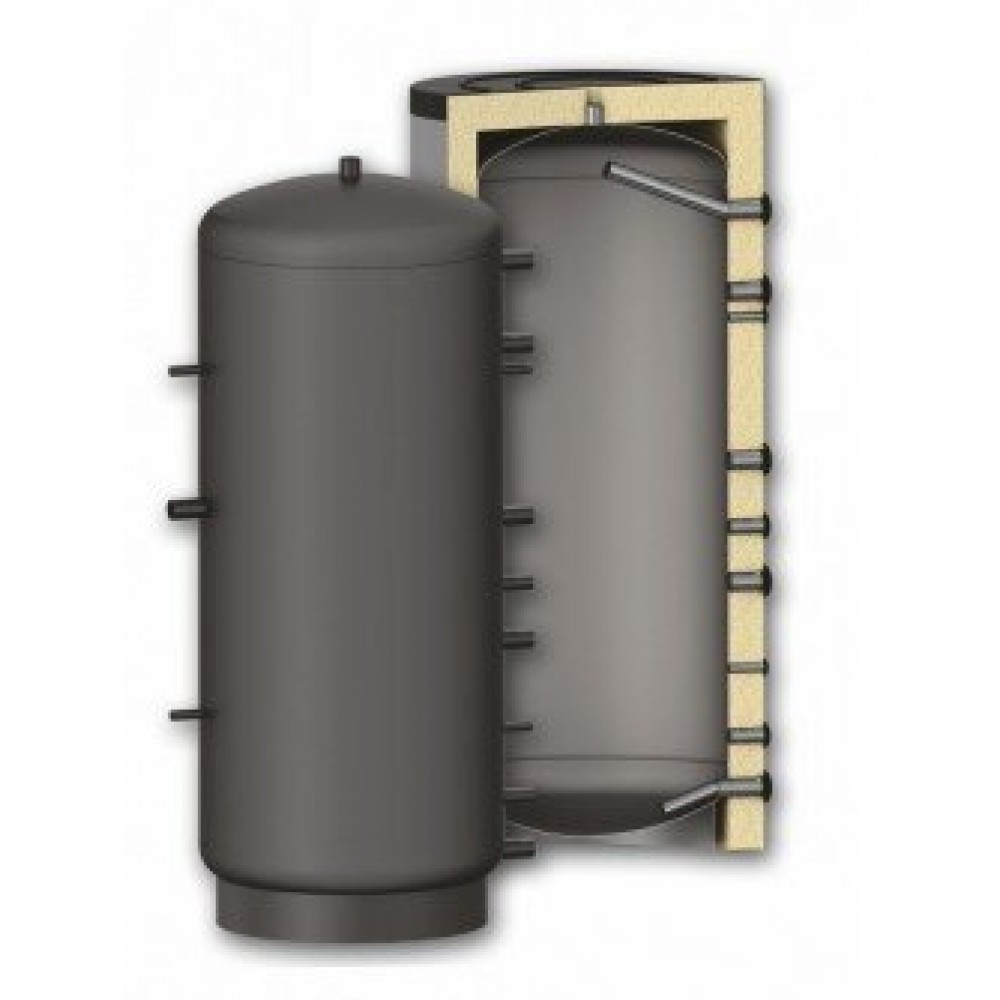

1. Aesthetic PVC jacket with color RAL 9006
2. Primer coated outer surface
3. Removable insulation
4. Water tank of low-carbon steel









Energy Efficiency Directive 2010/30 /EU,
Regulation 812/2013:


Class E - capacity from 300 to 500 Liters;
Class Е - capacity from 800 to 1000 Liters;







Characteristics
Svoris (kg) 274.0000
Gamintojo šalis Bulgaria
Aukštis (mm) 2220
Garantija 2 Years
Termometras Optional
Vandens talpa/turis (L) 1500
Montavimas Free standing
Šilumokaičio vamzdis No heat exchanger
Aukštis be izoliacijos (mm) 2170
Skersmuo (mm) 1200
Skersmuo be izoliacijos (mm) 1000
Minimalus vertikalus atstumas (mm) 2220
Izoliacijos svoris (kg) 23.2

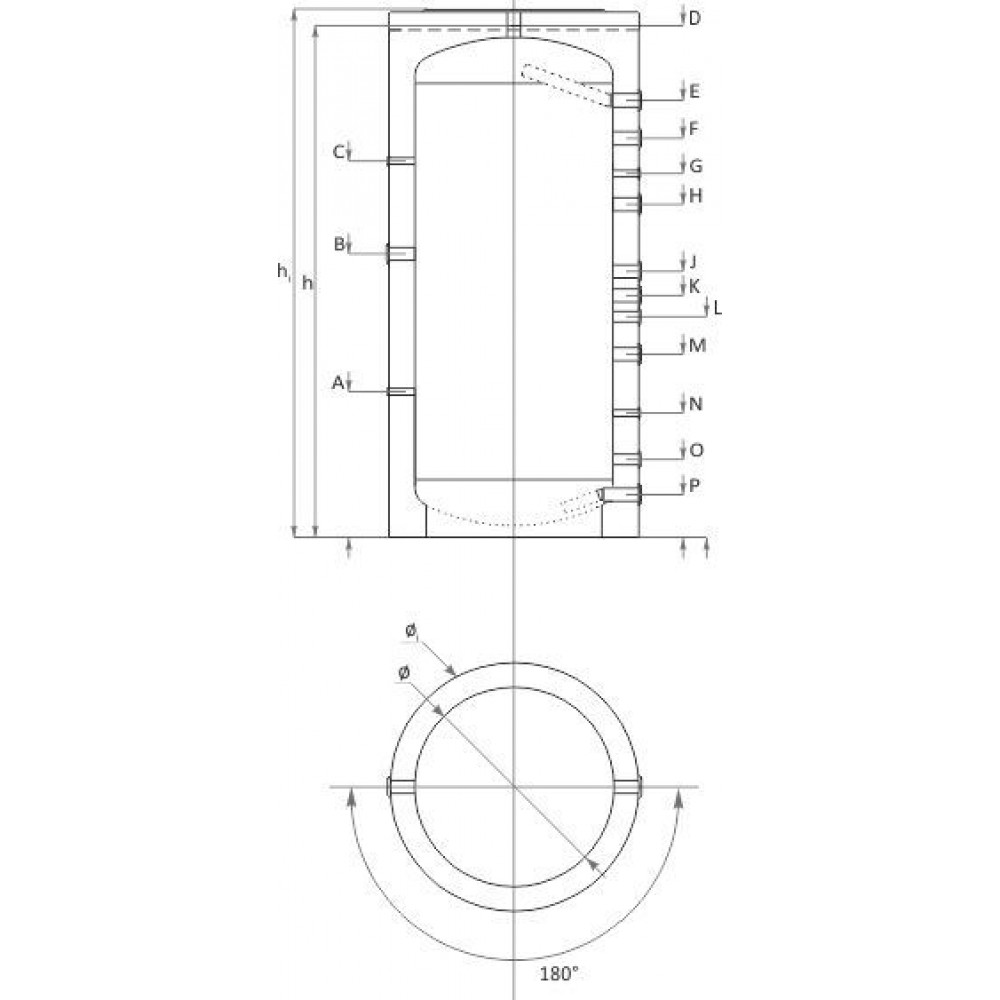

Elektros šildymo elemento B (mm) G 1 1/2'' / 1130
Jutiklio apvalkalas C (mm) G 1/2'' / 1500
Orto apvalkalas D (mm) G 1 1/2'' / 2170
Katilo šilumnesio E (mm) G 1 1/2'' / 1808
Jutiklio apvalkalas G (mm) G 1/2'' / 1525
Katilo šilumnesio H (mm) G 1 1/2'' / 1305
Katilo šilumnesio J (mm) G 1 1/2'' / 1085
Šilumnesio įėjimas L (mm) G 1'' / 895
Katilo šilumnesio M (mm) G 1 1/2'' / 765
Jutiklio apvalkalas N (mm) G 1/2'' / 520
Šilumnesio išėjimas O (mm) G 1'' / 375
Maksimali vamzdžio darbo temperatūra (°C) 95
Šilumnesio įėjimas F (mm) G 1 1/2'' / 1635
Katilo šilumnesio išėjimas P (mm) G 1 1/2'' / 235
Buferio darbo slėgis (bar) 3
Papildomas apvalkalas K (mm) G 1/2'' / 975
